Brand: Akrapovic

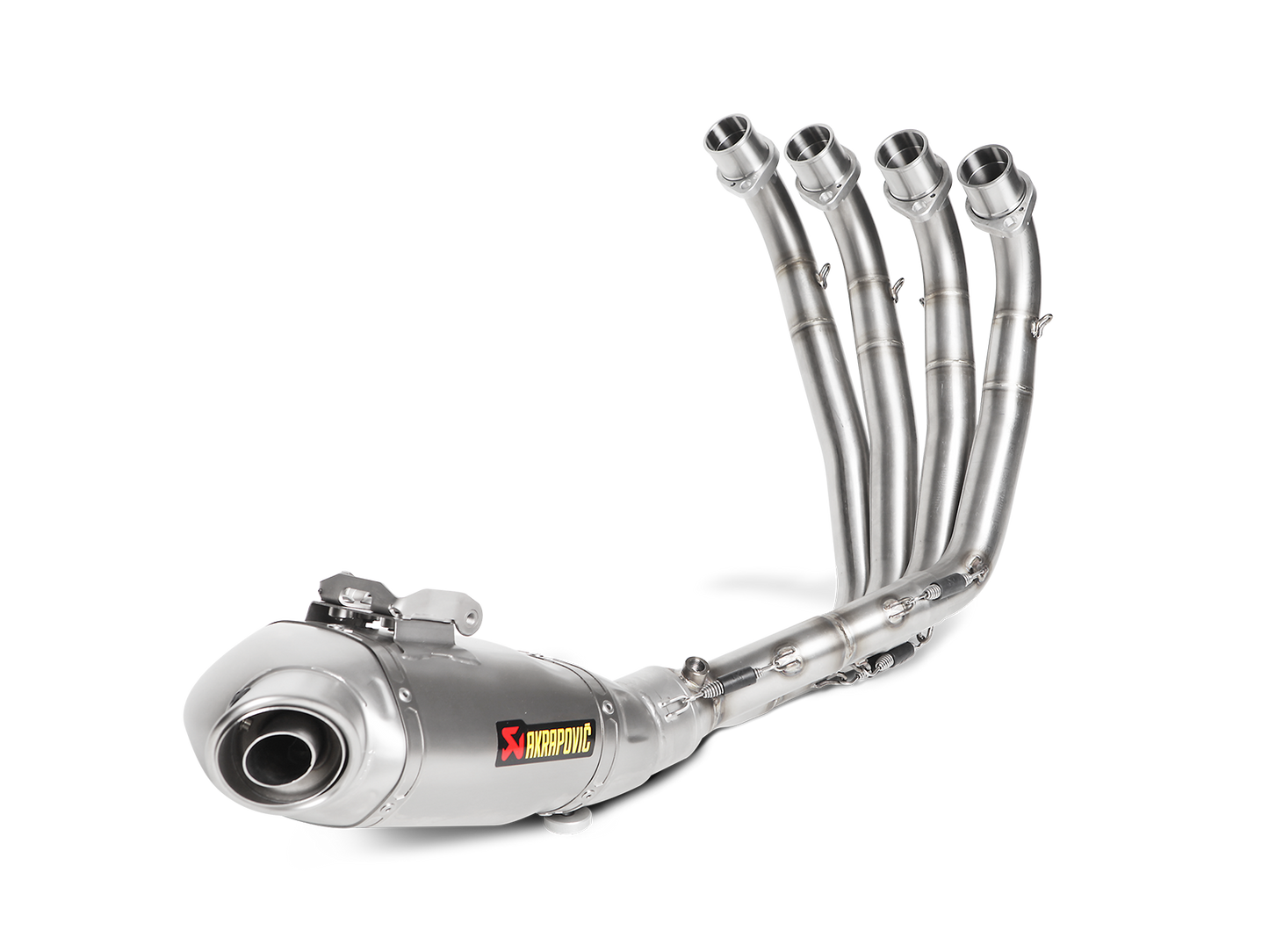

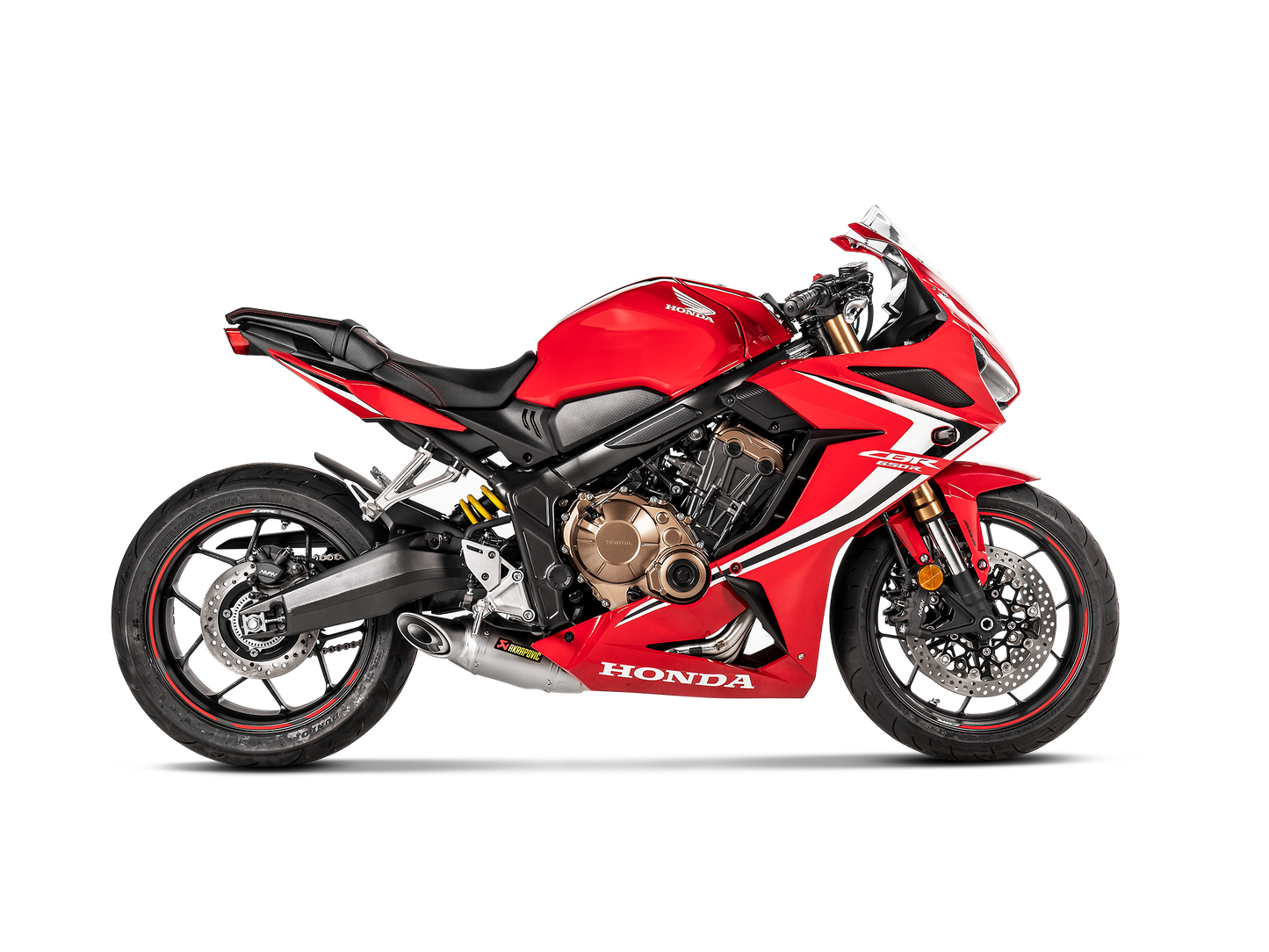

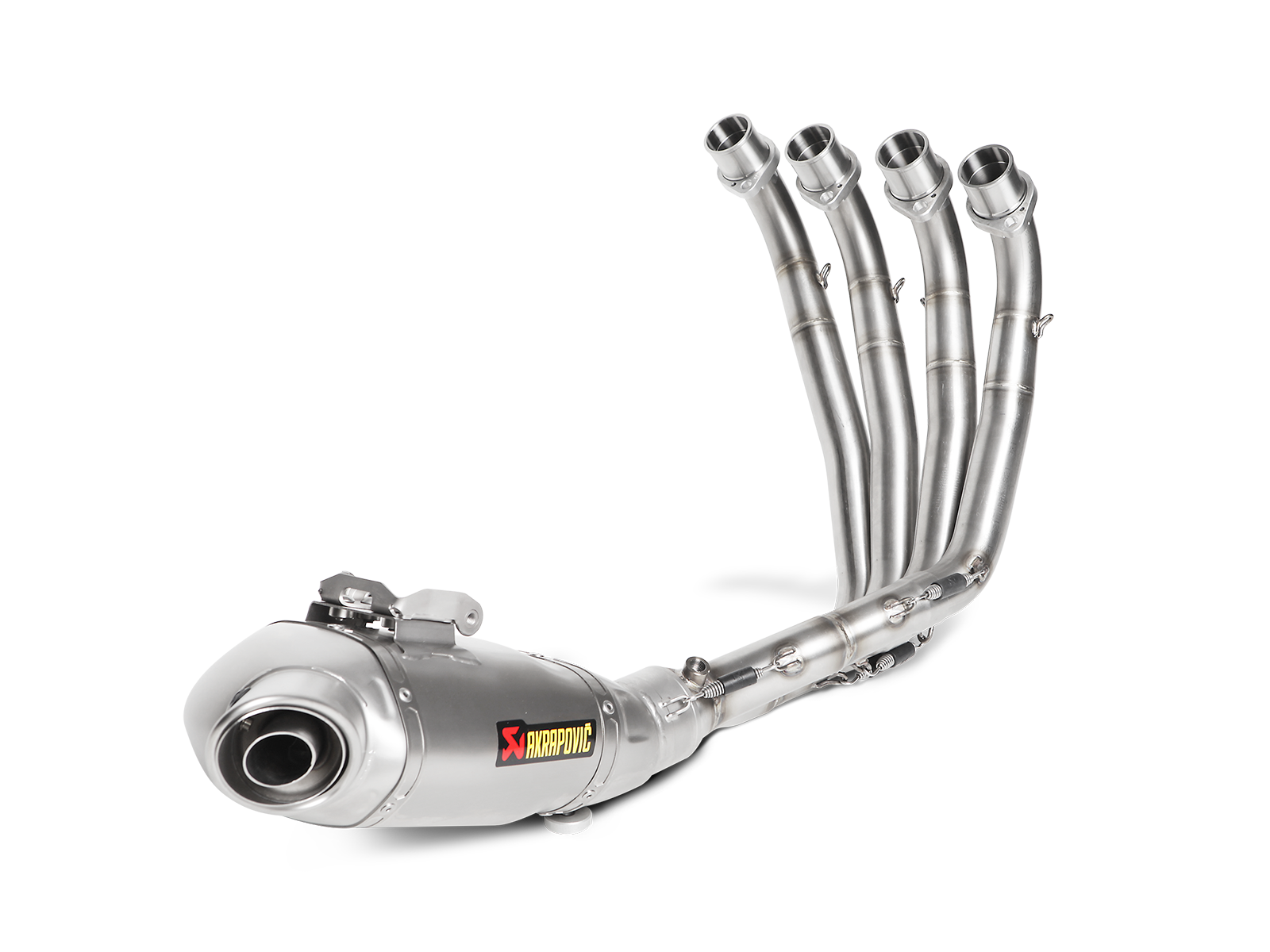

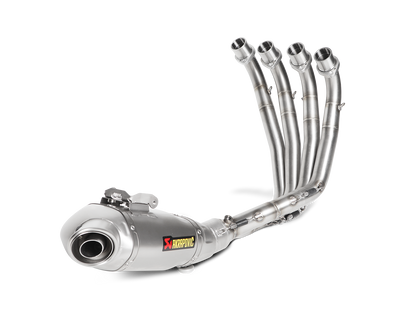

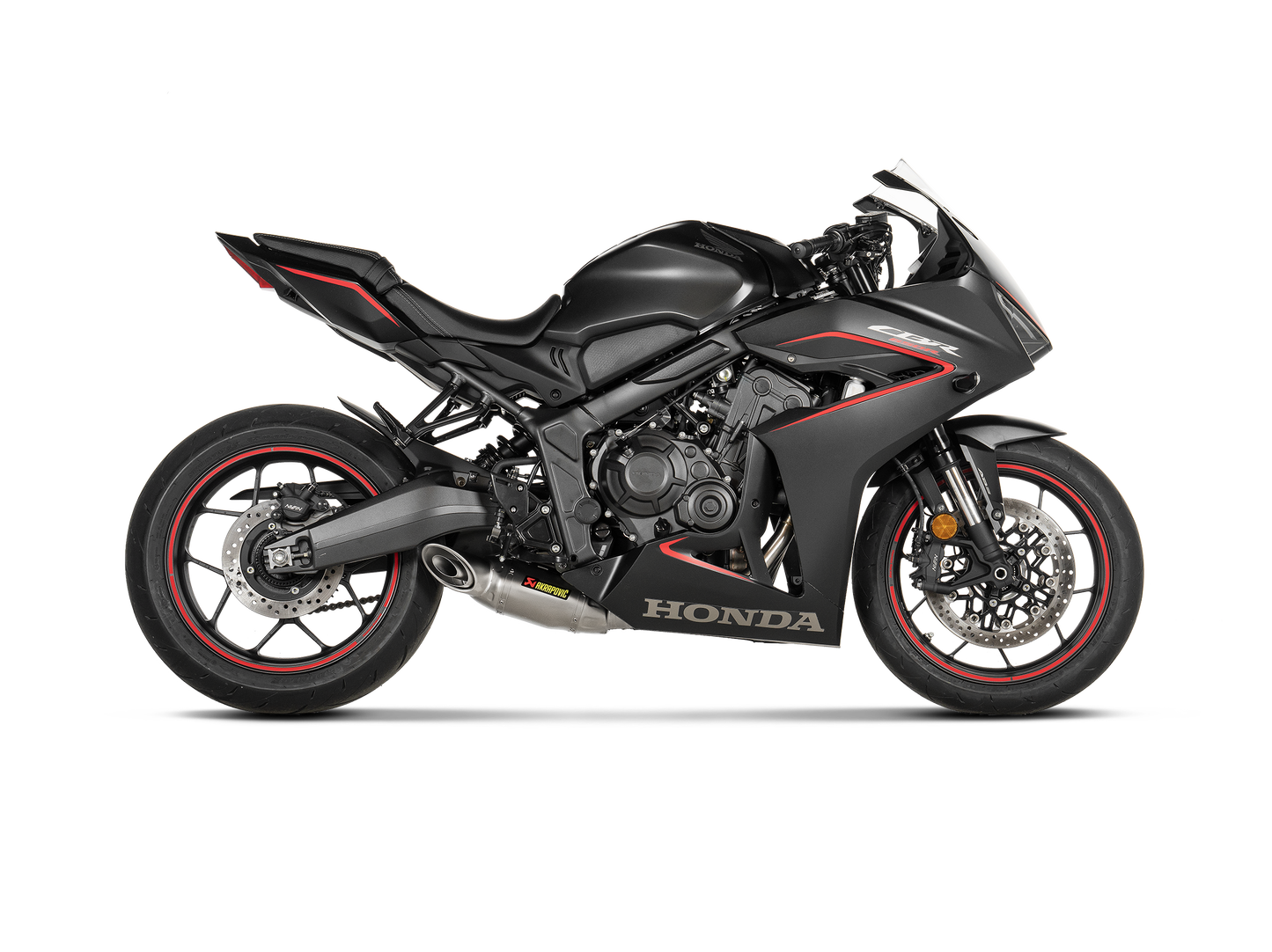

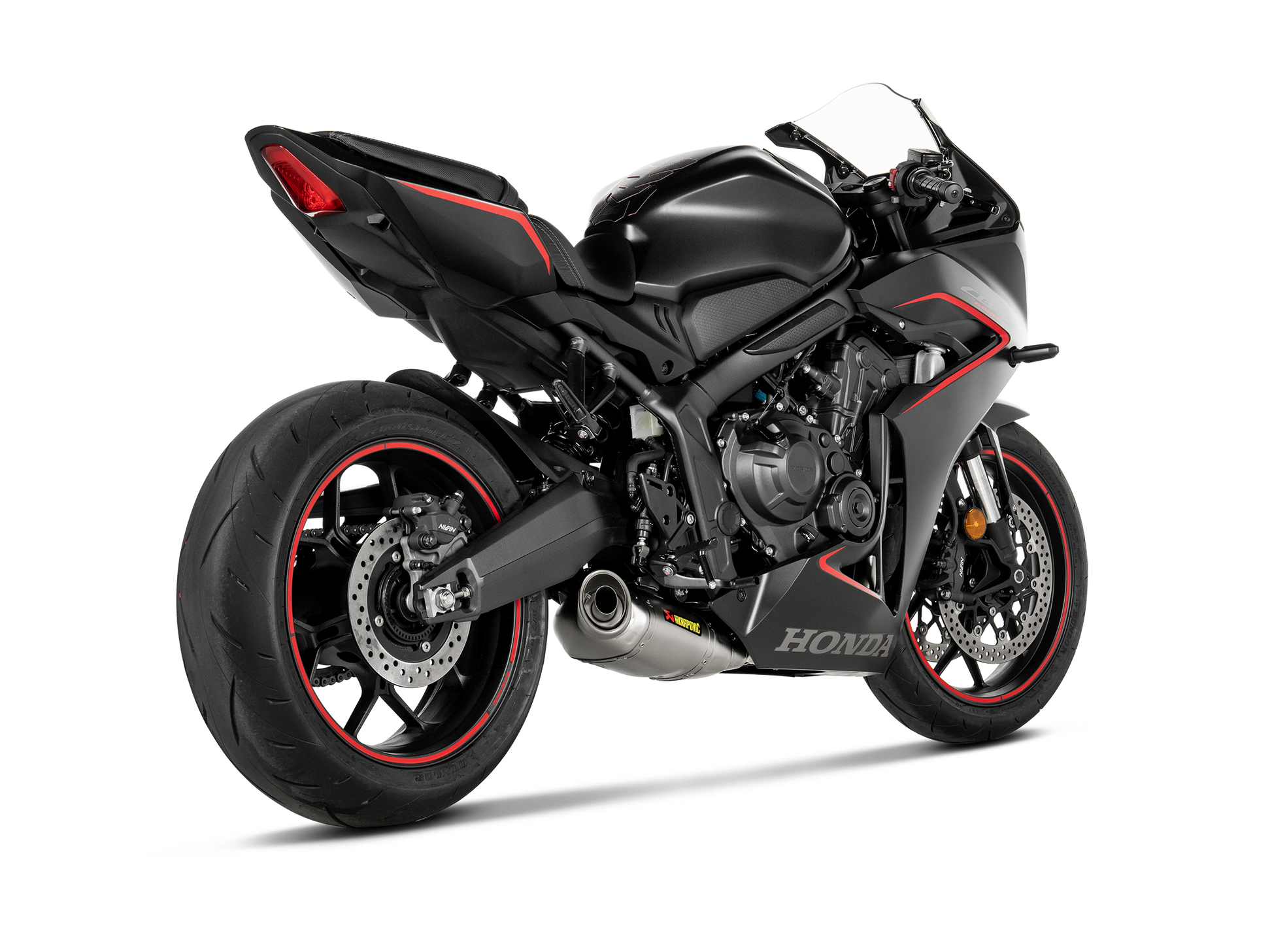

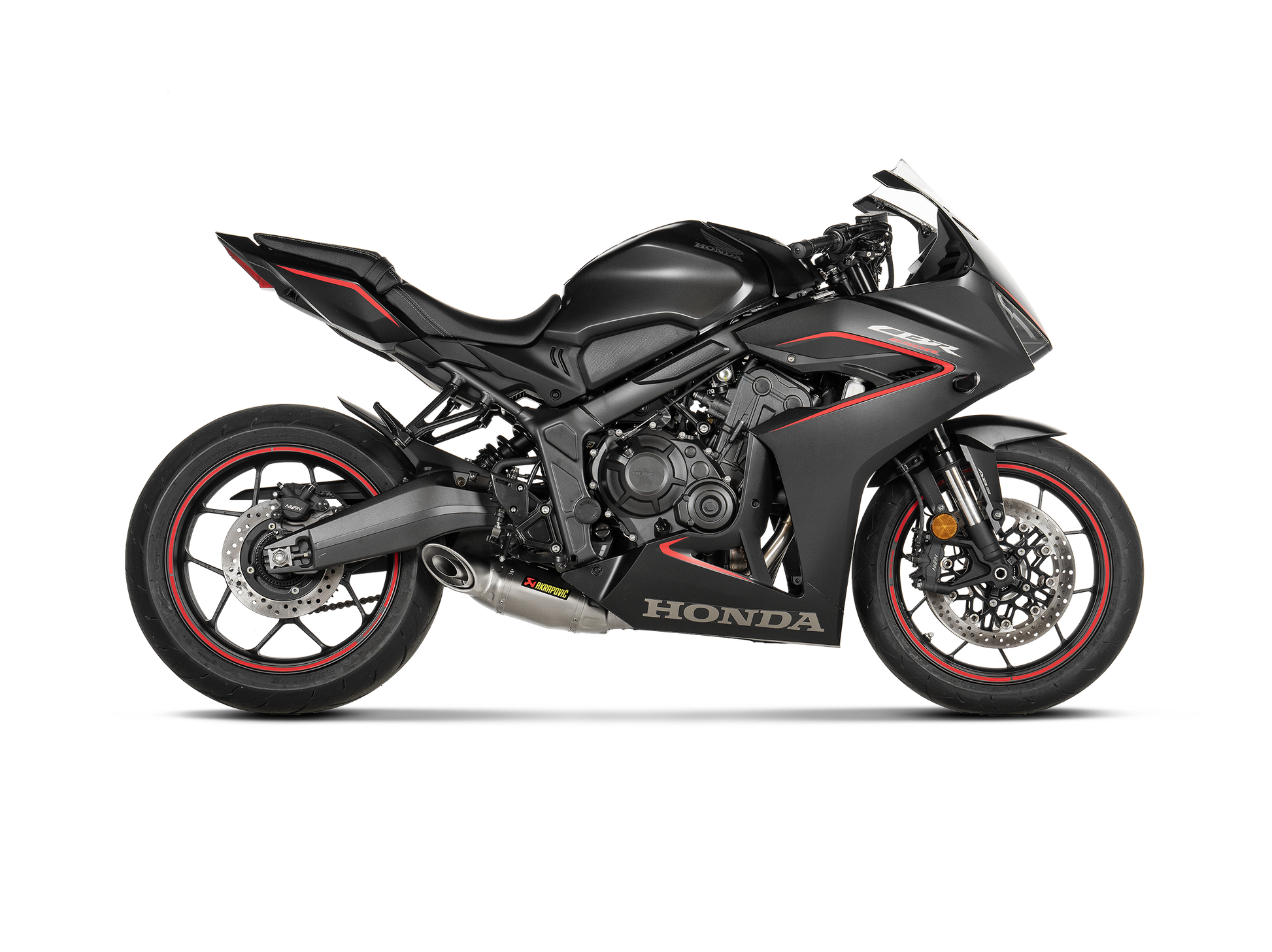

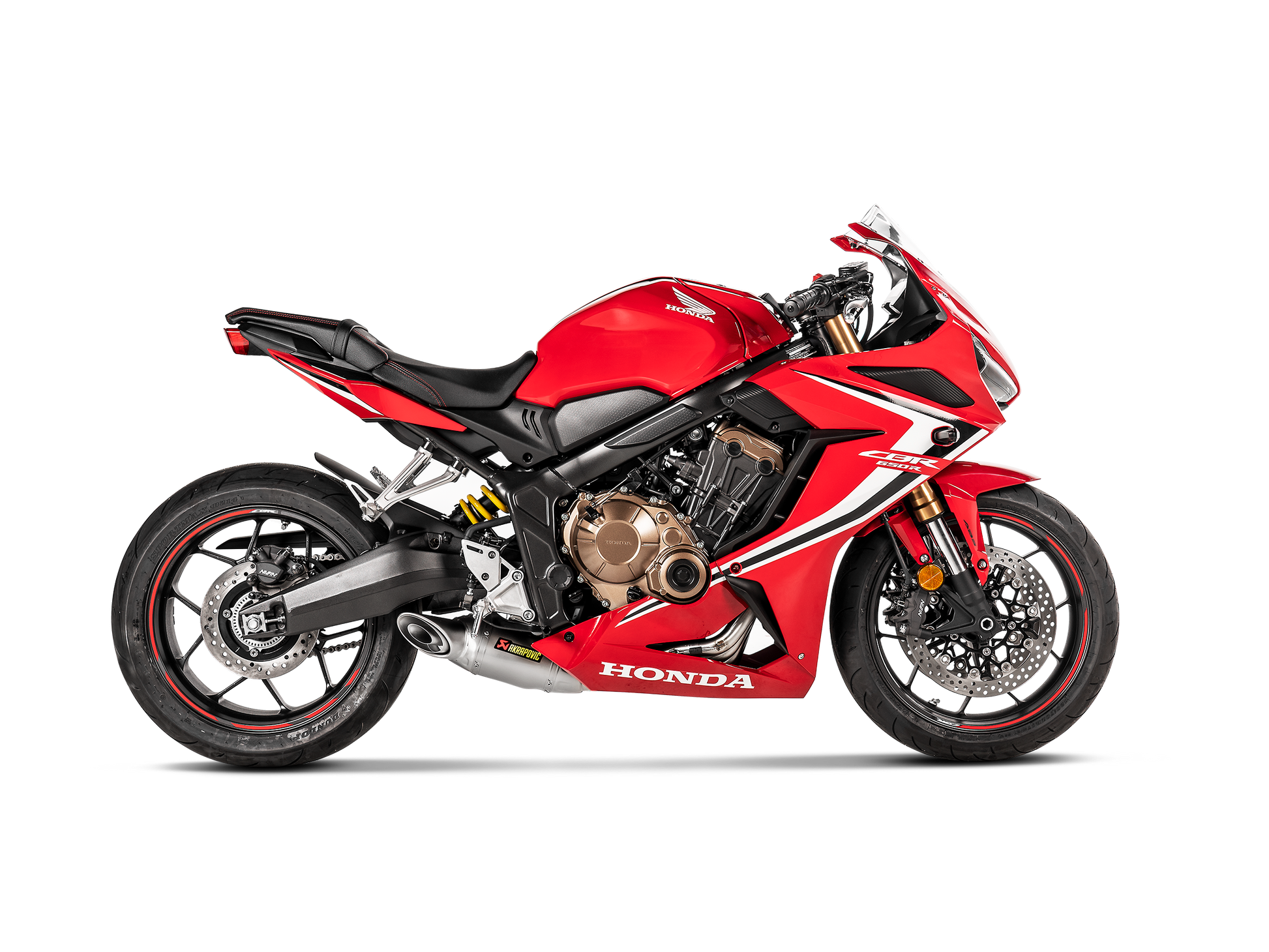

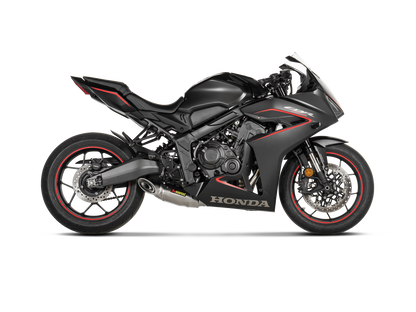

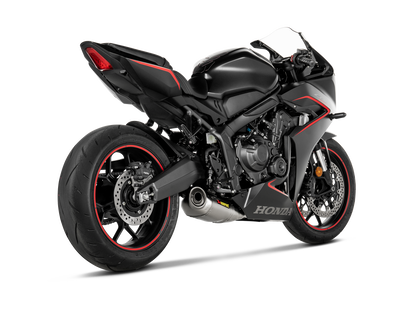

Akrapovic Racing Line Full System Exhaust (Titanium) Honda CB/CBR650R (2019+) - S-H6R15-AFT
Akrapovic Racing Line Full System Exhaust (Titanium) Honda CB/CBR650R (2019+) - S-H6R15-AFT
Couldn't load pickup availability
The Racing Line represents a full step in the exhaust system tuning process and offers a great balance between price and optimum performance. Racing performance exhaust systems are designed for riders that demand maximum performance from their motorcycle. The systems are lighter compared to the stock exhaust system and feature exceptional production quality and increased engine performance combined with pure racing sound output. A combination of racing materials like titanium for the muffler outer sleeve give these exhaust systems a racing touch.
When installing the Racing Line exhaust system on Euro5+ motorbikes (2 lambda sensors), the engine check light will appear after identifying a deviation in the stock catalytic converter´s parameters.
Power
+3.4 kW
at 11100 rpm
Torque
+2.1 Nm
at 8950 rpm
Weight
-4.9 kg
This product does not fit with original under cowl accessory part installed on Honda CB650R.
This product fits on Honda CB650R E-Clutch, but it is not compatible with Honda CBR650R E-clutch.
This product requires mandatory fitting kit:
- P-HF1572 for model years 2019 - 2023 with one lambda sensor
- P-HF1571 for model years from 2024 onwards with two lambda sensors
VIEW THE DATA
Unit | Stock | Akrapovič | Max gain | |
---|---|---|---|---|
Max. power | kW | 61.3 / 11050 rpm | 64.7 / 11200 rpm | + 3.4 / 11100 rpm |
HP (m) | 83.4 / 11050 rpm | 88 / 11200 rpm | + 4.6 / 11100 rpm | |
HP (i) | 82.3 / 11050 rpm | 86.8 / 11200 rpm | + 4.5 / 11100 rpm | |
Max. torque | Nm | 62.6 / 8850 rpm | 64.7 / 9000 rpm | + 2.1 / 8950 rpm |
lb-ft | 46.2 / 8850 rpm | 47.7 / 9000 rpm | + 1.5 / 8950 rpm | |
Weight | kg | 10 | 5.12 | - 4.9 |
lb | 22.1 | 11.3 | - 10.8 | |
% | - 48.8 | |||
Volume | dB | 95 / 5000 rpm | 98.2 / 5500 rpm | 3.2 |
Inst. time | min | 90 |
THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.
PLEASE MAKE SURE THE PRODUCT FITS THE VEHICLE / PART BEFORE BUYING
